FRP Rebar
Standard sizes:6mm, 10mm, 12mm, 16mm, 18mm, 20mm, 24mm, 30mm, 32mm, 40mm.
Standard length:any length.
Materials:Fiberglass and Vinyl ester or Epoxy resin.
Standard colour:natural or gray.
Other sizes and special requirements,welcome to contact with us immediately.
CURANJON FRP Rebars(Fiberglass Reinforced Plastic Bars/FRP Rebars) are manufactured by pultrusion process and our new machining technology.Their mechanical properties and bond properties are very excellent compare with the steel rebar.And their have very good in corrosion environments and the design service life can reach 100 years.
The mian content material are reinforced fiberglass material and high properties resin.Therefore,the rebar show excellent properties to these following fields of applications:

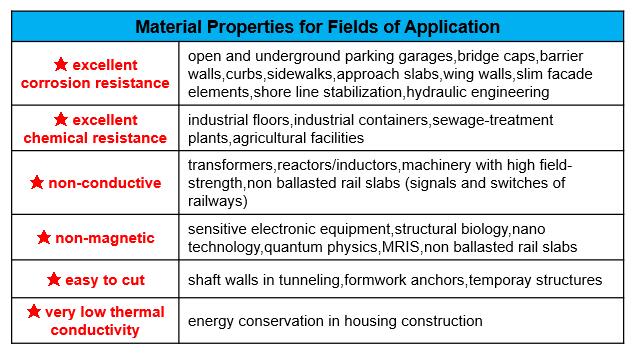

Applications:
Barrier Wall
Roads
Bridges&Tunnels
Electrical Isolation
Marine Engineering
Water Fronts
Water Treatment Plants
MRI Rooms,etc.
DESIGN CODE
FRP rebar do not follow the design code of steel rebar because the mechnical properties are different in some cases. FRP rebar has higher tensile strength but lower elasticity modulus compared to steel rebar. Therefore,we can not direct replacement of the design code of steel when using FRP rebar in projects.So some councils in some country have drawn up some codes for FRP rebar to engineers for reference.
Canada
CAN/CSA-S6-06 (R2012) Canadian Highway Bridge Design Code
CAN/CSA-S806-02 (R2007) Design and Construction of Building Components with Fibre-Reinforced Polymers
ISIS
Design Manual NO.3 Reinforcing Concrete Structures with Fibre Reinforced Polymers
Design Manual NO.5 Prestressing concrete structure with FRP
USA
ACI 440.1R-06 Guide for the Design and Construction of Structural Concrete Reinforced with FRP Bars
ACI 440R-07 Report on Fiber-Reinforced Polymer (FRP) Reinforcement for Concrete Structures
ACI 440.5-08 Specification for Construction with Fiber-Reinforced Polymer Reinforcing Bars
ACI 440.6-08(17) Specification for Carbon and Glass Fiber-Reinforced Polymer Bar Materials for Concrete Reinforcement(Reapproved 2017)
AASHTO GFRP-1 LRFD Bridge Design Guide Specifications for GFRP-Reinforced Concrete Bridge Decks and Traffic Railings
